Checkweigher with metal detector combination
Combined checkweigher and metal detector machine
Applied industries:
Food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc
Product function:
Detecting metal contaminants and checking packed product weight and rejecting the NG(under or over weight) products after weighed.
Features:
1. Compact design ,space saving and low cost installation
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. High sensitivity and precision for metal detection and weight checking
Technical details:
Name | Checkweigher | |
Model | PM-COM-2 | |
Menu lanugaue | English | |
Menu product qty | 250 kinds of products restored | |
Max weighing | Within 3000g | |
Increment | 0.1g | |
Accuracy(Зσ) | +-0.5g(depends on speed and weight) | |
Detection sensitivity | Fe 0.8mm, Non-Fe 1.2mm, SUS 1.5mm | |
Max weighing speed | 120 pcs/min | |
segments of sorting | Metal detector conveyor+ Weigher + double pusher rejector | |
metal detector conveyor size | length | 1200mm |
Width | 200mm/300mm | |
Weigher platform size | Length | 400mm/300mm |
Width | 200mm/300mm | |
Conveyor pusher size | length | 600mm |
Width | 200mm/300mm | |
Height from floor to conveyor belt | 750±50mm | |
Pressure Requirement | 0.4~0.8Mpa | |
Power Supply | 220V 50/60 Hz | |
IP degree | IP65 | |
Material of machine | Full SUS304 (Industrial grade) | |
Display type | 10 inches touch screen | |
Parameters save | Export via USB port | |

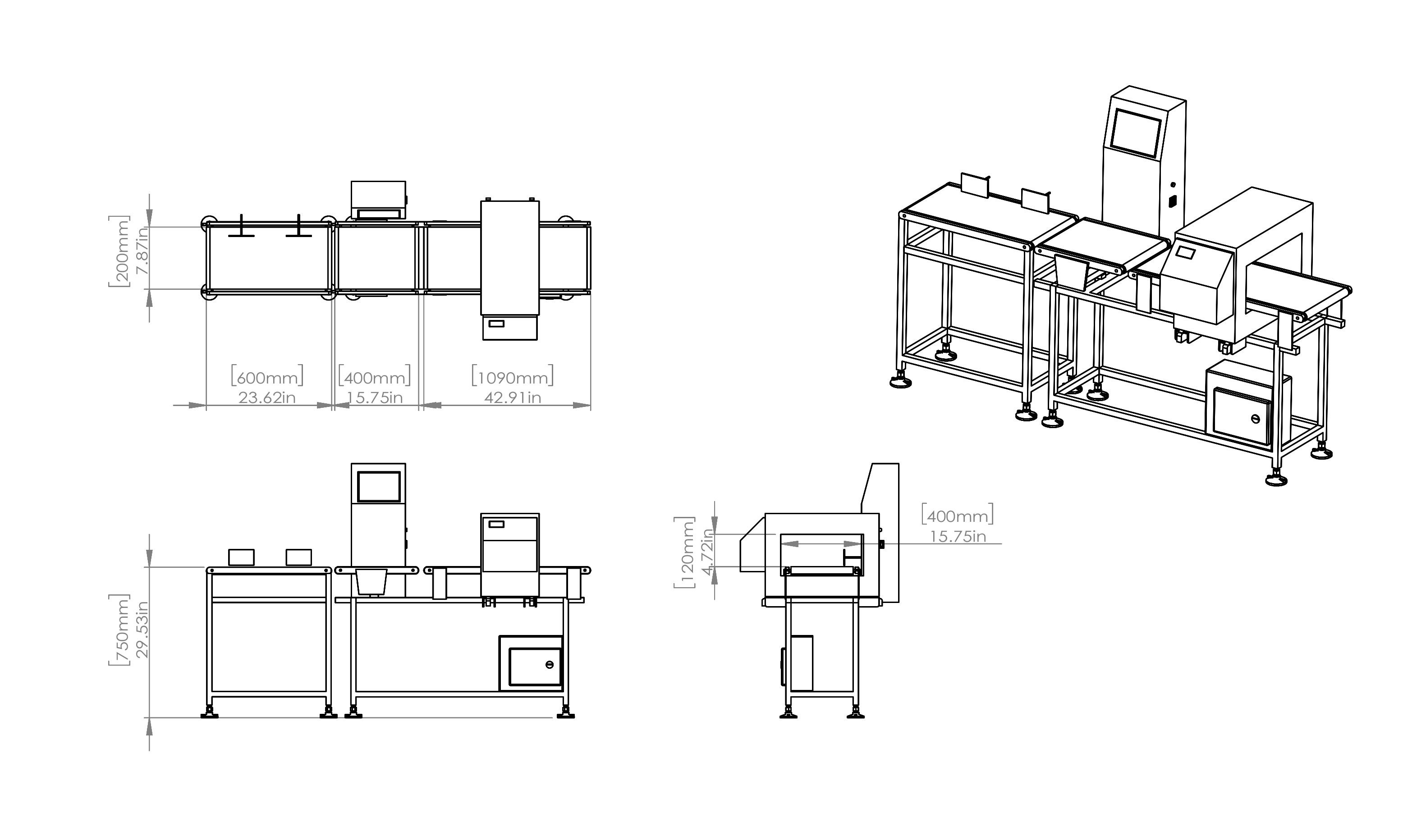

Draft drawing
